PWESD-5VSDB ESD静电保护管结电容37pF，适用于低速信号及按键接口

PWESD-5VSDB ESD 防护器件宣传页

产品概述

The PWESD-5VSDB is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time , make these parts ideal for ESD protection on designs where board space is at a premium.

主要特性

• Reverse stand-off voltage: 5.0V Max
• Bidirectional ESD protection of one line
• Femtofarad capacitance: CJ = 37pF (Typ)
• Response time is typically < 1 ns
• Low leakage current: nA Level
• ESD Protection: 30kV(air)/ 30kV(contact) ( IEC61000-4-2)
• RoHS compliant

典型应用

• Cellular Handsets and Accessories
• Personal Digital Assistants
• Notebooks and Handhelds
• Microprocessor based equipment

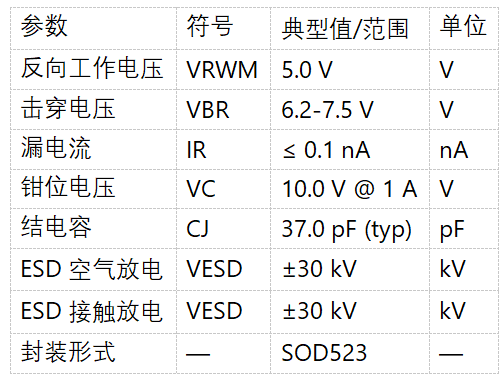

关键参数
