PWESD-5VSDC ESD 防护器件宣传页

产品概述

The PWESD-5VSDC is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time , make these parts ideal for ESD protection on designs where board space is at a premium.

主要特性

• Low Capacitance 2.8 pF(Typ)
• Reverse stand-off voltage: 5V Max
• Low leakage current: nA Level
• Response time is typically < 1 ns
• IEC61000−4−2 Level 4 ESD Protection

典型应用

• Cellular Handsets & Accessories
• Digital Cameras
• Peripherals
• MP3 Players
• Portable Instrumentation
• Notebooks & Desktop Computers
• Keypads, Side Keys, USB 2.0,LCD Displays

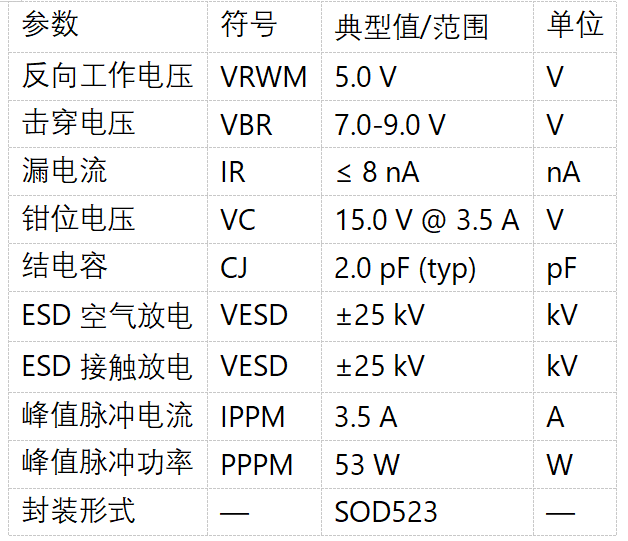

关键参数
