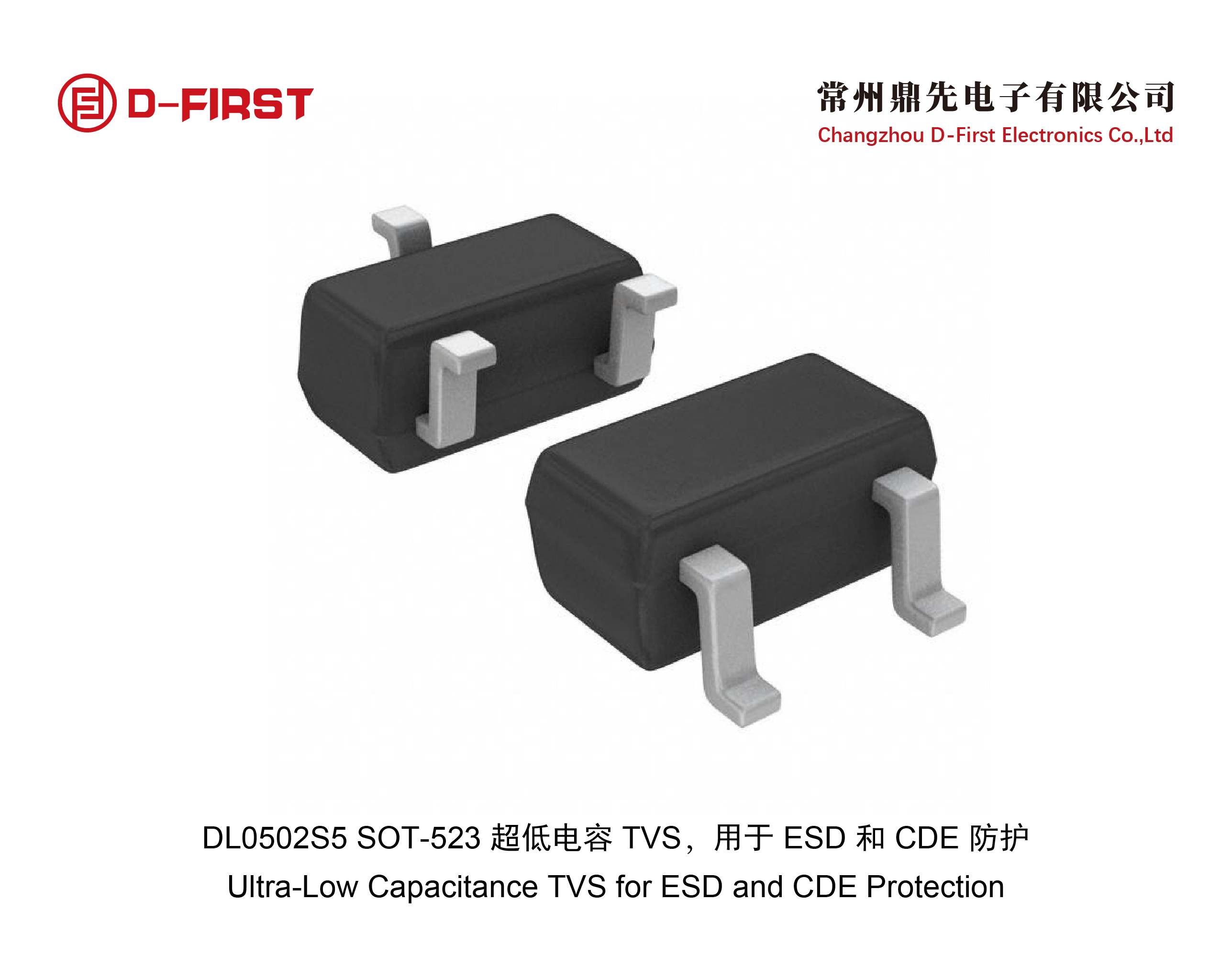

DL0502S5超低容TVS，用于 ESD和CDE防护 SOT-523封装
ESD Suppressors / TVS Diodes RAILCLAMP 2-LINE 5V SC75 RClamp0502B Ultra-Low Capacitance TVS for ESD and CDE Protection
功能
峰值脉冲功率Peak pulse power (tp = 8/20μs): 80W
峰值脉冲电流Peak pulse current (tp = 8/20μs): 5A
静电能力测试
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40A (5/50ns)
工作电压Reverse Stand-off Voltage: 5V
击穿电压Reverse Breakdown Voltage (Min.): 6V
漏电流Reverse Leakage Current: 0.5uA
钳位电压Clamping Voltage ( IPP=4A tp=8/20us ): 13V
结电容Junction Capacitance (VR=0V, f = 1MHz Between I/O pins): 0.6pF
固态硅雪崩技术
封装Package: SOT-523
