示意图	型号	发光颜色	封装	贴装方式	尺寸

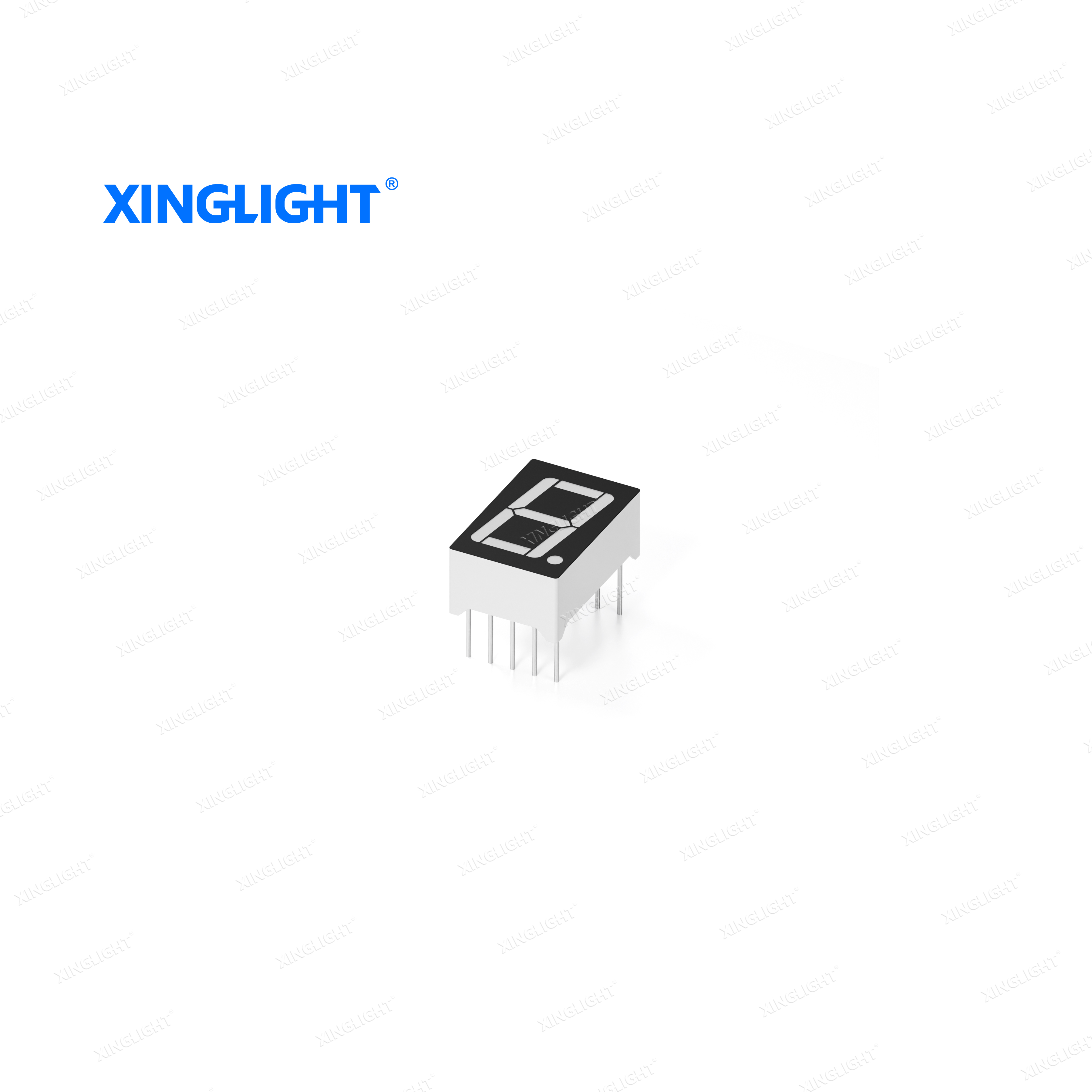

	XL-DA5161SRBC	红色	1 位/共阴	DIP	12.6*19*8.0mm
	XL-DB5161SRBC		1 位/共阳

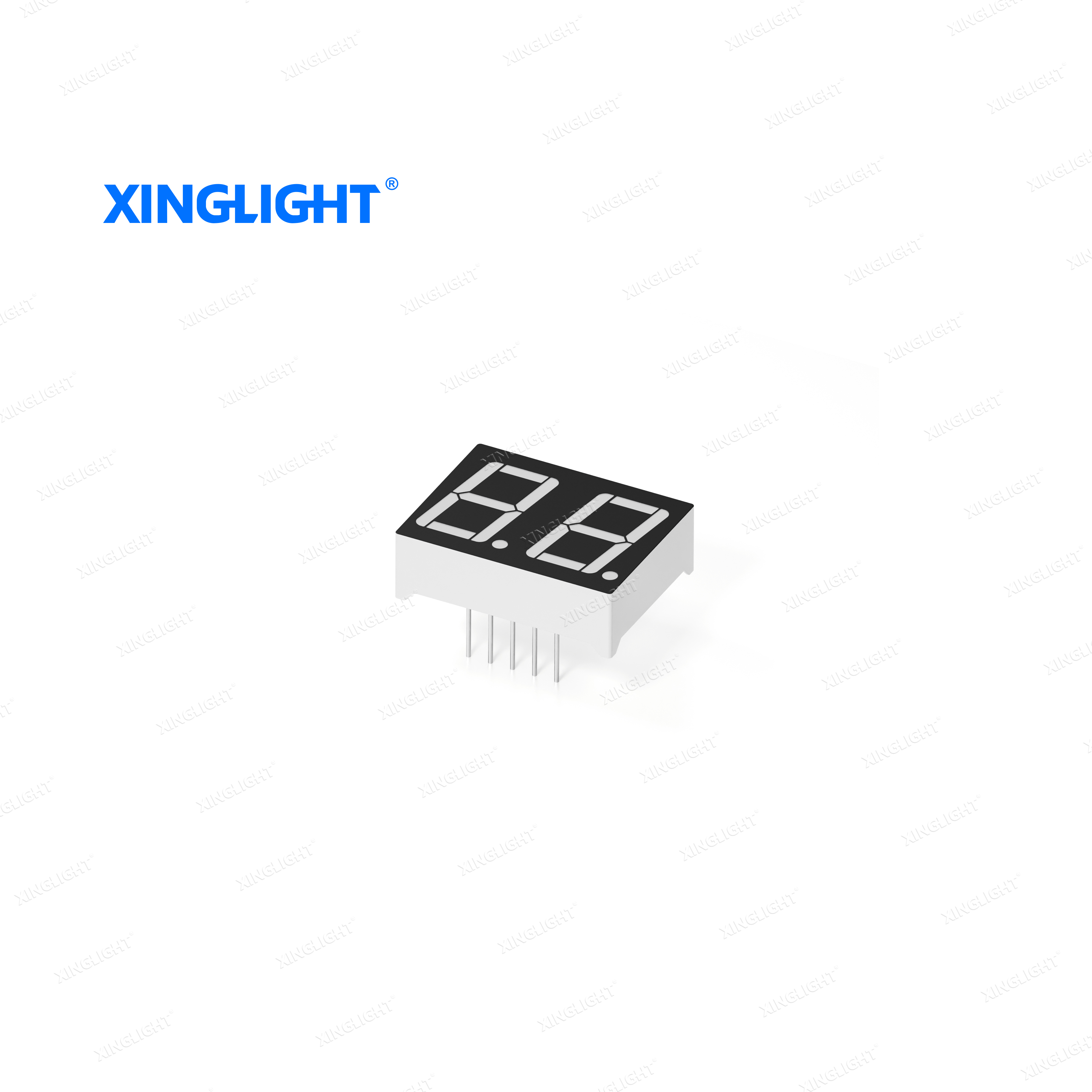

	XL-DA5261SRBC		2 位/共阴		25*19*8.0mm
	XL-DB5261SRBC		2 位/共阳

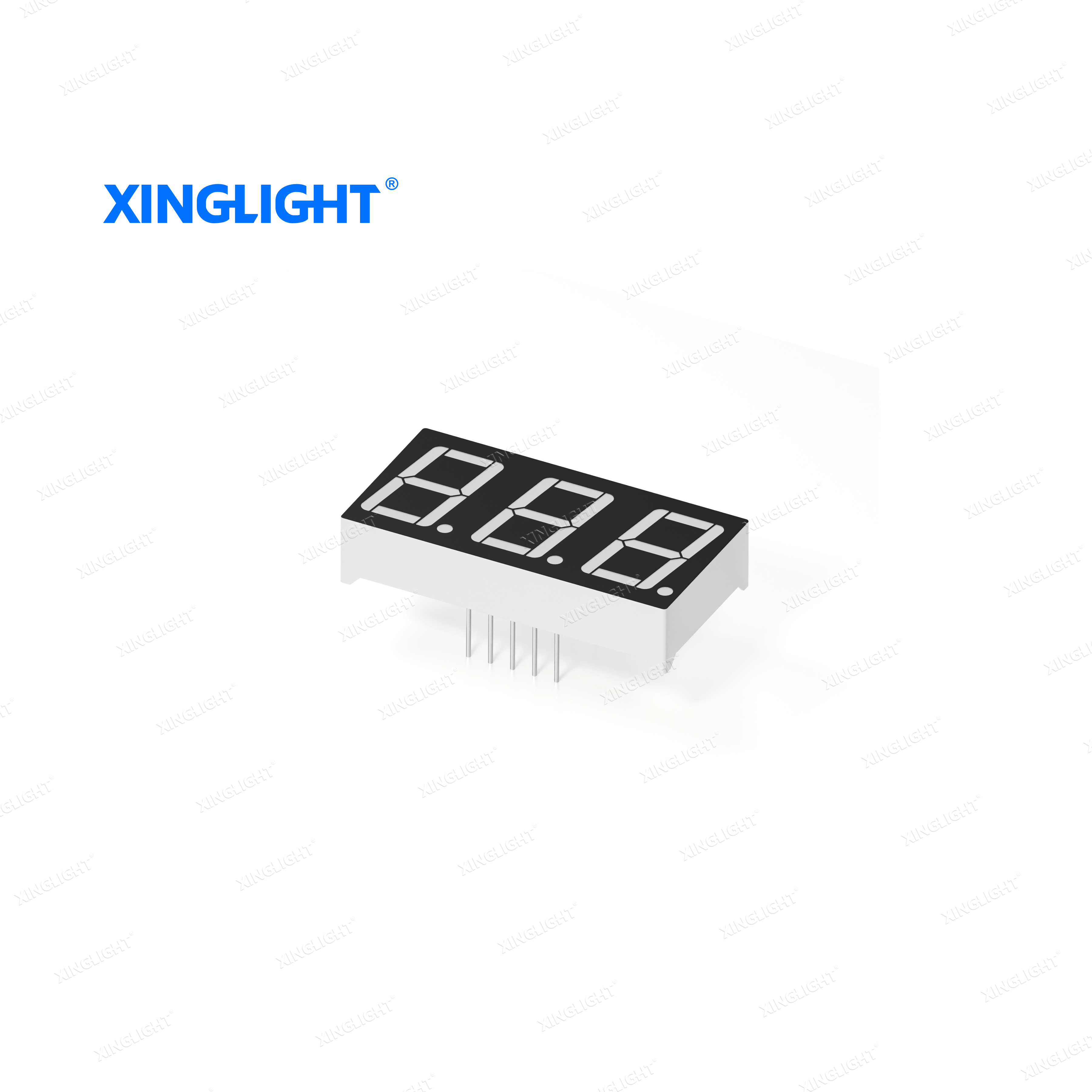

	XL-DA5361SRBC		3 位/共阴		37.6*19*8.0mm
	XL-DB5361SRBC		3 位/共阳

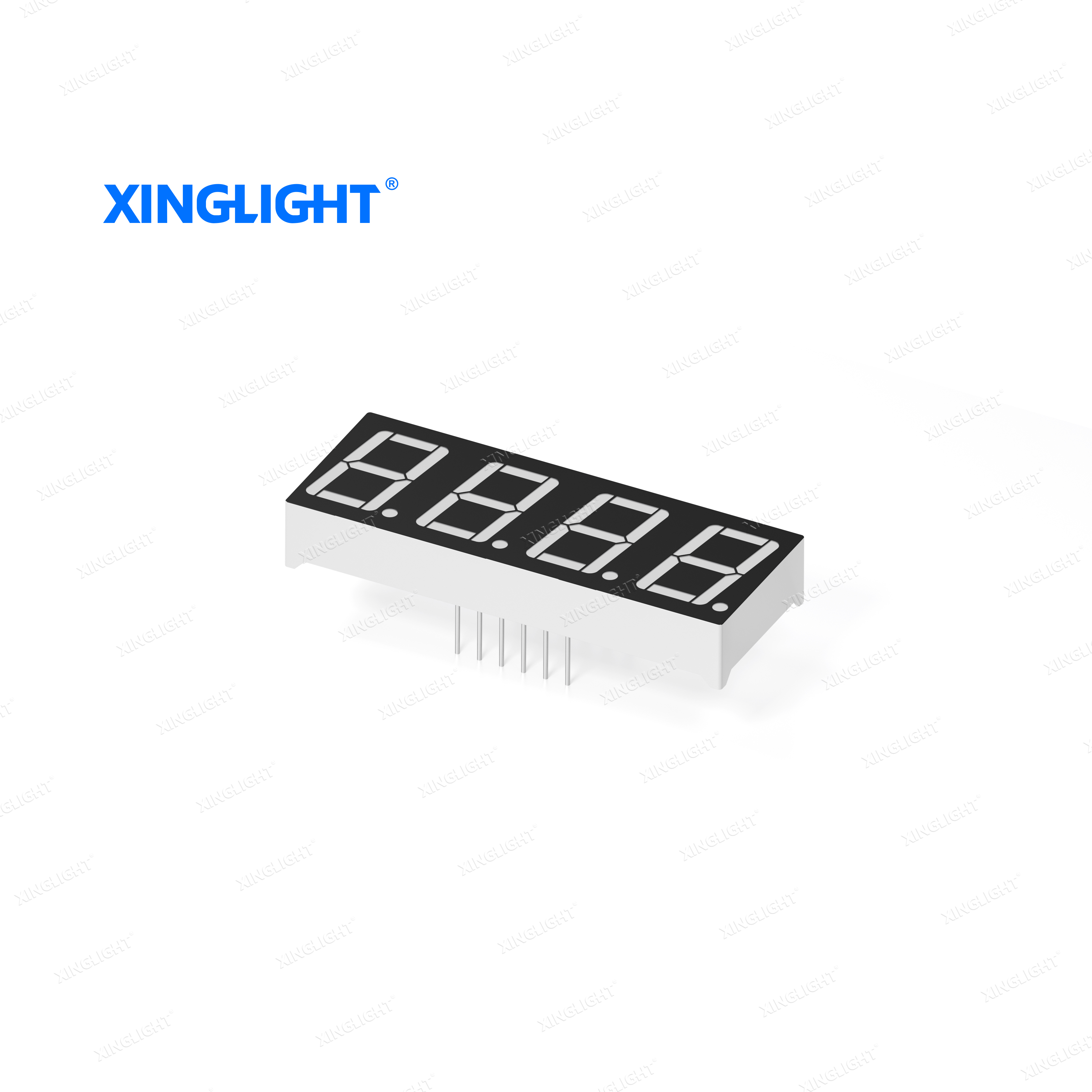

	XL-DA5461SRBC		4 位/共阴		50.4*19*8.0mm
	XL-DB5461SRBC		4 位/共阳

特点（Characteristics）：

发光颜色及胶体：红色
Luminous color and encapsulant: Red

能在低电压、小电流条件下驱动发光
Capable of emitting light driven by low voltage and low current

发光响应时间极短(<0.1μs)，高频特性好，单色性好，亮度高
Ultra-short light emission response time (<0.1μs), excellent high-frequency performance, good monochromaticity and high brightness

体积小，重量轻，抗冲击性能好
Small size, light weight and good impact resistance

固态封装，封装方式为灌胶型，稳定性高
Solid-state packaging with potting type, featuring high stability

寿命长，使用寿命在5万小时以上
Long service life of more than 50,000 hours

可连续扫描驱动各字节
Capable of continuously scanning and driving each byte

良好的显示效果、视角宽
Excellent display effect with wide viewing angle

应用领域（Product application）：
