3014 灯珠为侧发光 SMD LED,尺寸约3.0×1.4x1.32mm,采用侧出光设计,亮度高、散热好,适配 SMT 贴装,广泛应用于室内灯管灯条、LCD 背光源、汽车内部辅助照明、商业广告板等照明与显示场景
| 产品图 | 型号 | 发光颜色 | 封装 | 贴装方式 | 尺寸 |
|---|---|---|---|---|---|

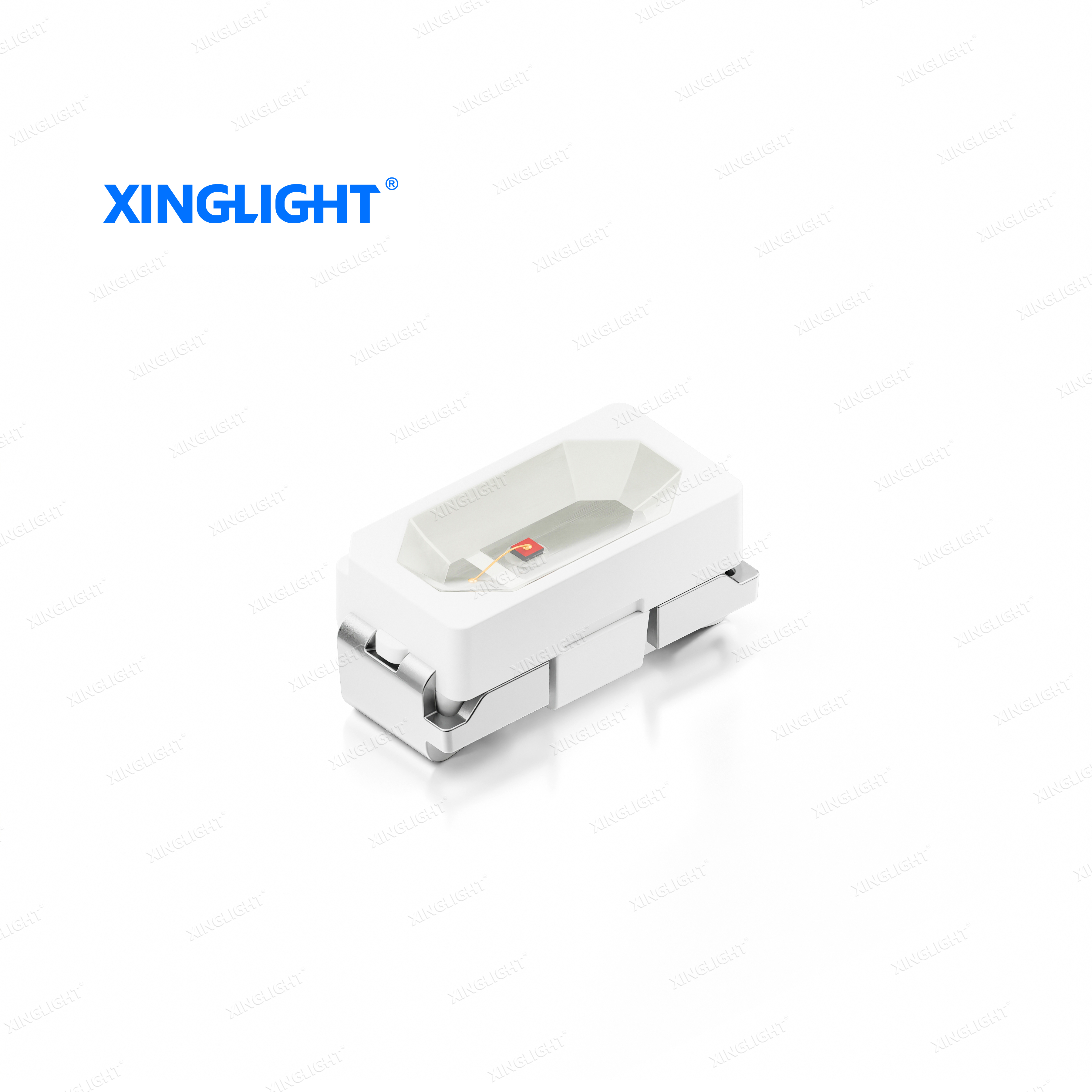

| XL-C3014SURC | 红色 |
3014 | 侧贴 | 3.0*1.4*1.32mm | |
| XL-C3014UGC | 翠绿 |
||||
| XL-C3014UBC | 蓝色 |
||||

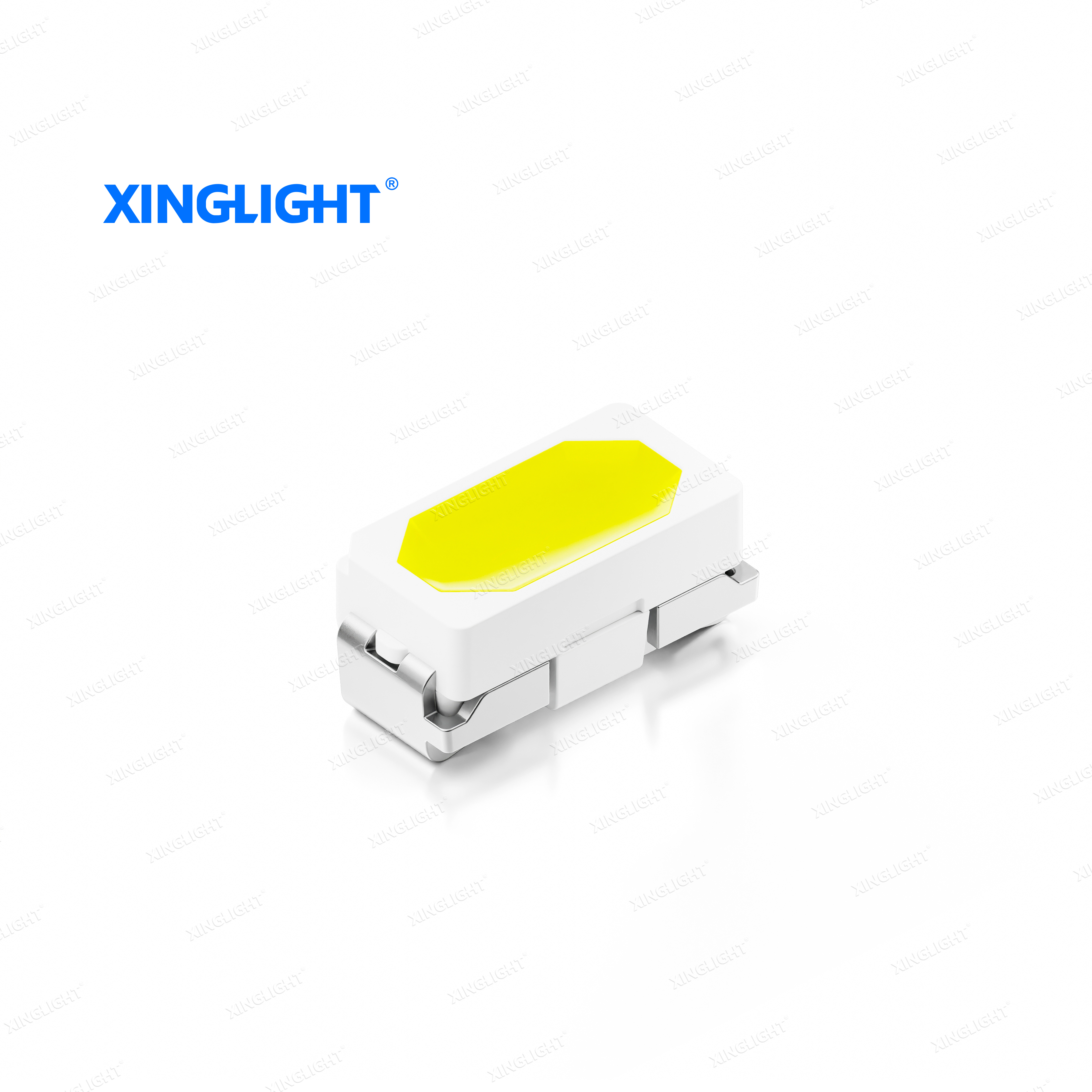

| XL-C3014UWC | 白色 |
特点 (Characteristics):
环保产品,符合ROHS要求
Environmental protection products meet ROHS requirements
湿气敏感性等级(MSL):3级
Moisture sensitivity level (MSL) :3 levels
EIA规范标准包装
EIA standard packaging
适用于SMT贴片自动化生产
Suitable for SMT automatic production
适用于红外线回流焊制程
Suitable for infrared reflow soldering process
应用领域(Product application):
LCD 背光源
LCD Backlight
汽车内部辅助照明
Automotive Interior Auxiliary Lighting
室内照明:灯管、灯条
Indoor Lighting: Lamps, Light Strips
商业照明显示:广告板
Commercial Lighting & Display: Advertising Boards
装饰照明:金属板硬灯条
Decorative Lighting: Metal Plate Rigid Light Strips
其它照明和显示类
Other Lighting & Display Categories
